搬瓦工新推出了香港的MEGA2机房,电信走CN2 GIA线路,移动联通直连。想必大家对这个机房的性能和线路还是多少有些好奇心的。所以我就把我再MCX10机房的VPS迁移到了MEGA2机房,做一个简单评测,包括VPS信息、IO、上传下载速度、回程路由等。测试VPS安装的事搬瓦工自带的Centos7 bbr 64位系统。具体的测试结果如下。
1、CPU、内存、读写
CPU Model : QEMU Virtual CPU version (cpu64-rhel6) CPU Cores : 1 Cores 2599.998 MHz x86_64 CPU Cache : 16384 KB OS : CentOS 7.3.1611 (64 Bit) KVM Kernel : 4.10.4-1.el7.elrepo.x86_64 Total Space : 1.6 GB / 20.4 GB Total RAM : 70 MB / 1007 MB (418 MB Buff) Total SWAP : 0 MB / 259 MB Uptime : 0 days 0 hour 13 min Load Average : 0.00, 0.02, 0.05 TCP CC : bbr ASN & ISP : AS25820, IT7 Networks Inc Organization : Cluster Logic Inc Location : Central, Hong Kong / HK Region : Central and Western District ---------------------------------------------------------------------- I/O Speed( 1.0GB ) : 470 MB/s I/O Speed( 1.0GB ) : 837 MB/s I/O Speed( 1.0GB ) : 850 MB/s Average I/O Speed : 719.0 MB/s
2、上传下载
---------------------------------------------------------------------- Node Name Upload Speed Download Speed Latency Speedtest.net 941.10 Mbit/s 940.56 Mbit/s 1.43 ms Fast.com 0.00 Mbit/s 143.5 Mbit/s - Nanjing 5G CT 360.99 Mbit/s 379.03 Mbit/s 32.06 ms Hefei 5G CT 349.50 Mbit/s 383.43 Mbit/s 36.58 ms Guangzhou 5G CT 213.71 Mbit/s 379.09 Mbit/s 8.65 ms Shanghai 5G CU 175.35 Mbit/s 189.20 Mbit/s 96.81 ms Guangzhou 5G CU 165.74 Mbit/s 193.82 Mbit/s 8.85 ms Wuxi 5G CM 387.74 Mbit/s 369.18 Mbit/s 43.11 ms Nanjing 5G CM 162.44 Mbit/s 80.30 Mbit/s 44.96 ms Hefei 5G CM 382.42 Mbit/s 390.00 Mbit/s 27.71 ms Changsha 5G CM 47.52 Mbit/s 259.92 Mbit/s 66.26 ms ---------------------------------------------------------------------- Finished in : 4 min 59 sec Timestamp : 2020-06-13 22:19:17 GMT+8
3、Ping延迟测试
测试时间北京时间22点45分(点击可查看大图)

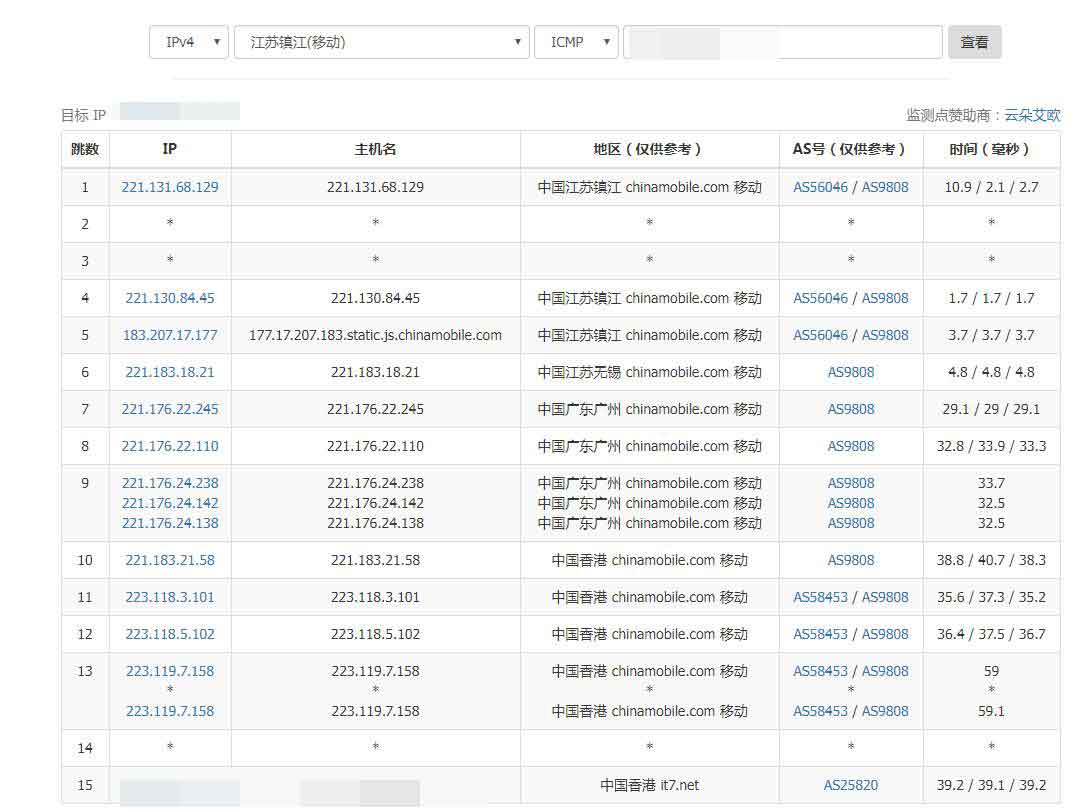

4、三网去程路由

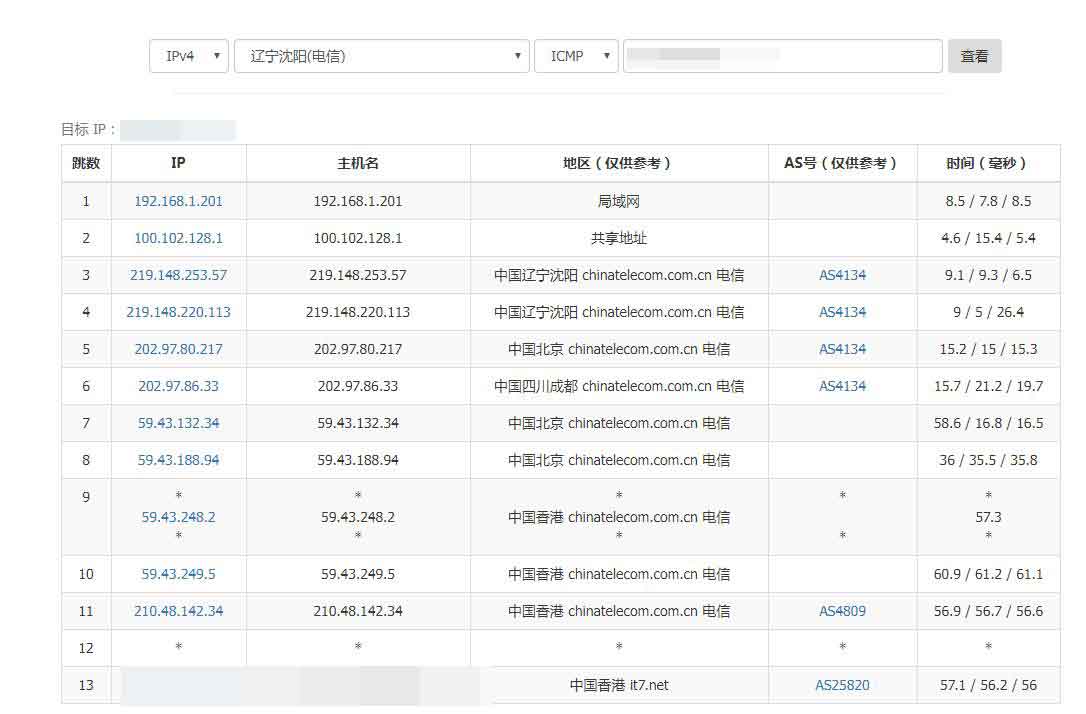

电信(点击查看大图):

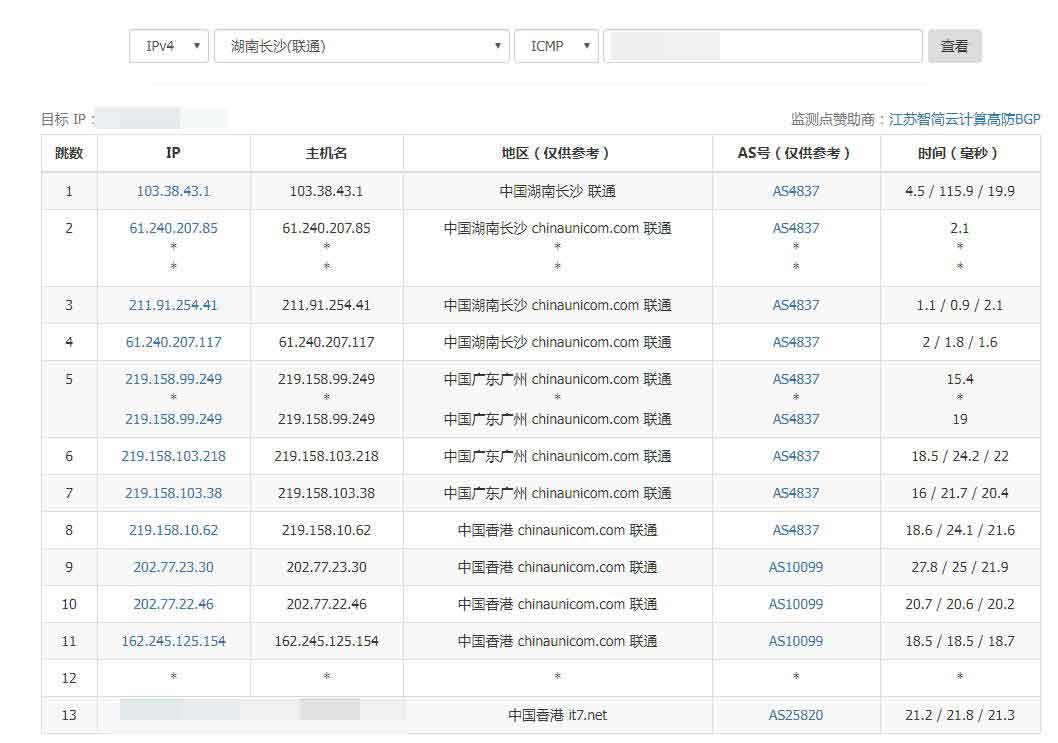

联通(点击查看大图):
5、三网回程路由
电信:
Traceroute to China, Beijing CT (TCP Mode, Max 50 Hop) ============================================================ traceroute to 180.149.128.9 (180.149.128.9), 50 hops max, 60 byte packets 1 172.22.18.200 11.07 ms * LAN Address 2 104.254.113.226 0.65 ms * China Hong Kong zenlayer.com 3 210.48.142.33 1.45 ms AS4809 China Hong Kong ChinaTelecom 4 59.43.247.245 1.43 ms * China Hong Kong ChinaTelecom 5 59.43.248.1 41.37 ms * China Beijing ChinaTelecom 6 * 7 59.43.132.17 43.12 ms * China Beijing ChinaTelecom 8 * 9 36.110.244.46 44.23 ms AS23724 China Beijing ChinaTelecom 10 36.110.246.198 44.37 ms AS23724 China Beijing ChinaTelecom 11 180.149.128.9 54.33 ms AS23724 China Beijing ChinaTelecom Traceroute to China, Shanghai CT (TCP Mode, Max 50 Hop) ============================================================ traceroute to 180.153.28.5 (180.153.28.5), 50 hops max, 60 byte packets 1 172.22.18.200 7.46 ms * LAN Address 2 104.254.113.226 3.09 ms * China Hong Kong zenlayer.com 3 210.48.142.33 1.44 ms AS4809 China Hong Kong ChinaTelecom 4 59.43.248.61 1.92 ms * China ChinaTelecom 5 59.43.183.105 23.85 ms * China Guangdong Guangzhou ChinaTelecom 6 * 7 59.43.130.101 8.48 ms * China Guangdong Guangzhou ChinaTelecom 8 59.43.18.21 39.67 ms * China Shanghai ChinaTelecom 9 101.95.88.206 42.96 ms AS4812 China Shanghai ChinaTelecom 10 * 11 124.74.232.238 32.21 ms AS4812 China Shanghai ChinaTelecom 12 101.227.255.38 31.75 ms AS4812 China Shanghai ChinaTelecom 13 180.153.28.5 30.24 ms AS4812 China Shanghai ChinaTelecom
联通:
Traceroute to China, Shanghai CU AS9929 (TCP Mode, Max 50 Hop) ============================================================ traceroute to 210.13.66.238 (210.13.66.238), 50 hops max, 60 byte packets 1 172.22.18.200 5.13 ms * LAN Address 2 * 3 45.43.32.68 0.66 ms AS21859 China Hong Kong zenlayer.com 4 192.254.81.111 0.81 ms AS21859 China Hong Kong zenlayer.com 5 123.255.91.154 10.25 ms * China Hong Kong hkix.net 6 43.252.86.65 8.27 ms AS10099 China Hong Kong ChinaUnicom 7 * 8 218.105.7.213 9.68 ms AS9929 China Hong Kong ChinaUnicom 9 218.105.2.169 11.64 ms AS9929 China Guangdong Guangzhou ChinaUnicom 10 218.105.2.210 38.98 ms AS9929 China Shanghai ChinaUnicom 11 210.13.75.138 45.19 ms AS9929 China Shanghai ChinaUnicom 12 210.13.66.237 42.04 ms AS9929 China Shanghai ChinaUnicom 13 210.13.66.238 41.42 ms AS9929 China Shanghai ChinaUnicom Traceroute to China, Beijing CU (TCP Mode, Max 50 Hop) ============================================================ traceroute to 123.125.99.1 (123.125.99.1), 50 hops max, 60 byte packets 1 172.22.18.200 3.18 ms * LAN Address 2 104.254.113.226 0.66 ms * China Hong Kong zenlayer.com 3 162.245.125.153 1.73 ms AS10099 China Hong Kong ChinaUnicom 4 162.245.124.17 5.96 ms AS10099 China Hong Kong ChinaUnicom 5 202.77.23.29 2.08 ms AS10099 China Hong Kong ChinaUnicom 6 219.158.10.29 9.01 ms AS4837 China Guangdong Guangzhou ChinaUnicom 7 219.158.115.157 40.68 ms AS4837 China Beijing ChinaUnicom 8 219.158.16.65 45.91 ms AS4837 China Beijing ChinaUnicom 9 219.158.5.157 87.72 ms AS4837 China Beijing ChinaUnicom 10 202.96.12.62 77.91 ms AS4808 China Beijing ChinaUnicom 11 202.96.12.50 100.63 ms AS4808 China Beijing ChinaUnicom 12 124.65.194.50 104.04 ms AS4808 China Beijing ChinaUnicom 13 61.135.113.158 96.29 ms AS4808 China Beijing ChinaUnicom 14 * 15 * 16 123.125.99.1 105.68 ms AS4808 China Beijing ChinaUnicom
移动:
Traceroute to China, Beijing CM (TCP Mode, Max 50 Hop) ============================================================ traceroute to 211.136.25.153 (211.136.25.153), 50 hops max, 60 byte packets 1 172.22.18.200 9.84 ms * LAN Address 2 104.254.113.226 0.66 ms * China Hong Kong zenlayer.com 3 223.119.7.157 2.03 ms AS58453 China Hong Kong ChinaMobile 4 223.118.2.177 5.87 ms AS58453 China Hong Kong ChinaMobile 5 * 6 * 7 * 8 221.176.21.229 48.61 ms AS9808 China Beijing ChinaMobile 9 221.183.26.26 49.22 ms AS9808 China Beijing ChinaMobile 10 211.136.63.66 50.65 ms AS56048 China Beijing ChinaMobile 11 211.136.95.226 40.66 ms AS56048 China Beijing ChinaMobile 12 * 13 * 14 211.136.25.153 40.68 ms AS56048 China Beijing ChinaMobile Traceroute to China, Guangzhou CM (TCP Mode, Max 50 Hop) ============================================================ traceroute to 120.196.212.25 (120.196.212.25), 50 hops max, 60 byte packets 1 172.22.18.200 1.47 ms * LAN Address 2 104.254.113.226 0.70 ms * China Hong Kong zenlayer.com 3 223.119.7.157 1.98 ms AS58453 China Hong Kong ChinaMobile 4 223.118.5.101 2.79 ms AS58453 China Hong Kong ChinaMobile 5 * 6 * 7 221.183.52.89 14.61 ms AS9808 China ChinaMobile 8 221.176.18.109 6.92 ms AS9808 China Guangdong Guangzhou ChinaMobile 9 221.183.24.70 27.55 ms AS9808 China Guangdong Shenzhen ChinaMobile 10 211.136.249.117 9.35 ms AS56040 China Guangdong Guangzhou ChinaMobile 11 211.136.196.206 26.18 ms AS56040 China Guangdong Guangzhou ChinaMobile 12 211.136.231.6 10.67 ms AS56040 China Guangdong Guangzhou ChinaMobile 13 * 14 120.196.212.25 103.36 ms AS56040 China Guangdong Guangzhou ChinaMobile
以上就是对搬瓦工香港MEGA2机房VPS的测试,有兴趣的朋友可以点击搬瓦工香港新机房MEGA2 CN2 GIA直连$89.99起查看搬瓦工香港MEGA2机房可购买的套餐
